Stainless Steel Remote Condensers for a dairy processing industry in Scotland
Features

Remote Condensers Dairy Industry Scotlandhttps://friulinnovazione.it/it/consulenza-e-supporto/imprese/imprese-insediate/thermokey/

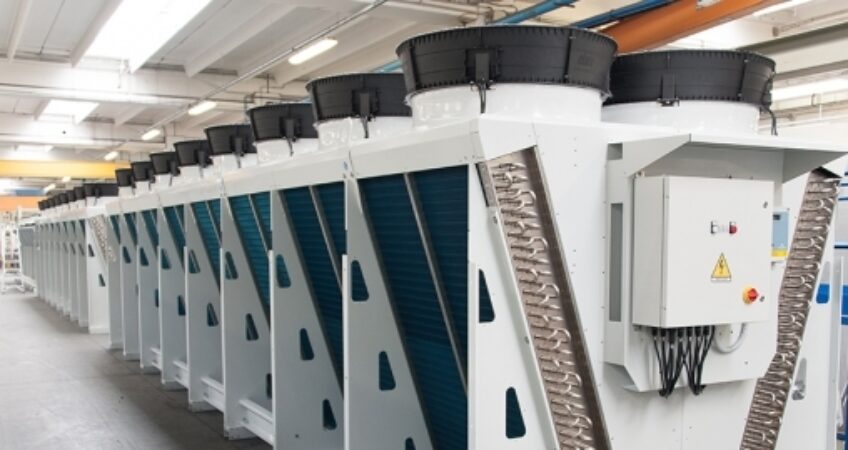

3 Stainless steel Power-J Remote Condensers Special V-Type for Ammonia.

ThermoKey has provided three a href=”https://www.thermokey.com/en/products/remote-condensers/turbo-j-condensers/”>new designa href=”https://www.thermokey.com/en/products/remote-condensers/turbo JVAKH2890B1 EP (EC) S These special V-type remote condensers are equipped with 16 fans (900mm diameter) each, which serve chillers that cool milk circuits and have a total capacity of 2.5 MW.

Stainless Steel Remote Condensers for a dairy processing industry in Scotland

ThermoKey has supplied 3 new design JVAKH2890B1 Q1E EP (EC) S. These special V-type remote condensers are provided with 16 fans each (900mm diameter) serving chillers that cool milk circuits for a total capacity of 2,5 MW.

  • Stainless steel tubes, headers and weld-on connections;
  • Hydrophobic blue fins;
  • Painted RAL 7035 FeZn casing;
  • Use of fan speed controller to control speed of all fans via external signal;
  • High efficiency and long durability EC fans with Axitop diffusers for a lower noise level.

ThermoKey Remote Condenser Turbo-J. Gas condensation capacity range: 100 to 1915 kW (R404A, Tc= 40 °C, T1= 25 °C). AC or EC motor, 900 mm diameter. Benefits: Maximum performance in a small package High efficiency geometry 2-16 fans. Modular design AISI 304 stainless steel or copper piping. Finned packs re made from a variety of materials. Complete accessory package. 8 sound levels. AFS (Air Fresh System). WFS (Wet Fin System). EPS (Evaporative Panel System) available upon request. Casing made of powder-coated galvanized steel.
