Energy & Process cooling

detail of plastic bootle production



ThermoKey offers solutions for cooling any production process in any environment: from cooling generators in the middle of the desert, to cooling compressors of an offshore platform pumping station, from cooling gas turbine’s auxiliary systems, to cooling the ladle in a steel plant.

ThermoKey offers a wide range of products, thus guaranteeing the best trade-off between the plant’s purchase and operating costs.

The great offer and the ability to come up with customized solutions, guarantee the best outcome based on the plant’s location, the sound level requested, the space available and the aggressiveness of the work environment.

For the past 25 years ThermoKey has offered to its clients heat dissipation systems which have proven reliable and performing through time.

TKMicro Modular Power Cooler

TKMicro Modular Power Cooler with microchannel technology and EC fan motors. Single module with two fans & four vertical coils for very high efficiency. Each module provides 200 kW capacity with footprint of 1.1 m by 2.2 m, and weights 455 kg. Above unit provides nominal 1000 kW, with a footprint of 6.0 m x 2.2 m. Variable speed fans adjust RPM depending on heat load and ambient. Reduced in/out connections for limited in site installation. Individual isolation valves per module,...
Super Power-J Dry Coolers

Super Power-J Dry Coolers

Super Power-J Dry Coolers Super Power- Dry Coolers Performance range: Capacity from 290 to 2219 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: Maximum performance, minimum footprint High efficiency geometry Modular design, 8-20 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System)...
Thermokey PowerGen Radiator

PowerGen Radiator

PowerGen Radiators would be the ideal solution for power plant owners and contractors. It is designed to meet the specific needs of the electricity production market, which requires particularly rigorous quality standards. Some of the possible applications for this system: large electricity production plants, small electricity generators for limited energy use, small biogas plants for agricultural producers, geothermal plants. Thermokey PowerGen Radiator Area of use: Electricity...

Power-J (V-Tower) Dry Cooler

The Power-J (V-Tower) is a series of drycoolers that can be equipped with the EPS adiabatic system. The EPS (Evaporative Panel System) is an adiabatic system with evaporative panels to reach higher specific capacity compared to a traditional Dry Cooler. The adiabatic system can operate in two ways: Water Saving: increased specific capacity when using H2O – (H2O when engine at maximum). Energy Saving: energy saving to help the fan (H20 immediately). The Power-J (V-Tower)satisfies the VDI...

TKMicro H2O Modular Liquid Coolers

Performance range: capacity for each module up to 120 kW** Fans: Diamter Ø 800 AC and EC motor Modules: from 1 to n   (**) Standard conditions - ΔT = 15k ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C

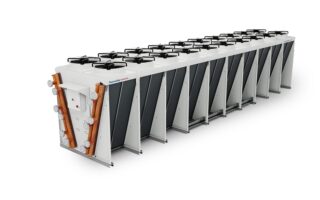

Super Power-J Dry Coolers

Super Power-J Dry Coolers

Performance range: Capacity from 290 to 2219 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: Maximum performance, minimum footprint High efficiency geometry Modular design, 8-20 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System) o WFS (Wet Fin System), available upon request

Power-J Dry Coolers

POWER-J DRY COOLERS (1 FAN ROW) Performance range: Capacity from 70 to 961 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: High efficiency geometry Modular design, 2-7 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System) o WFS (Wet Fin System), available upon request POWER-J DRY...

Power-Line Dry Coolers

POWER-LINE DRY COOLERS Performance range: Capacity from 8 to 890 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 500, 630, 800, 900, 1000 mm, AC or EC motor Benefits: High efficiency geometry Modular design, 1-10 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories Casing in galvanized steel, powder painted POWER-LINE DRY COOLERS (2 FAN...
