Dry coolers

FEATURES

ThermoKey offers over 180,000 Dry Cooler solutions to satisfy the needs of the industrial air–conditioning and cooling sector operators.

They guarantee the respect of the most strict enviromental norms in terms of acoustic pollution.

Fields of application are: air conditioning, data center cooling, energy and process cooling in many industries.

ThermoKey range of dry coolers gives the opportunity to select units with energy up to A++, thus allowing flexibility in energy management.

Modular Dry Cooler

Micro Modular Dry Cooler with microchannel technology and EC fan motors. Single module with two fans & four vertical coils for very high efficiency. Each module provides 200 kW capacity with footprint of 1.1 m by 2.2 m, and weights 455 kg. Above unit provides nominal 1000 kW, with a footprint of 6.0 m x 2.2 m. Variable speed fans adjust RPM depending on heat load and ambient. Reduced in/out connections for limited in site installation. Individual isolation valves per module, allow...

Super Power-J Dry Coolers

Super Power-J Dry Coolers Super Power- Dry Coolers Performance range: Capacity from 290 to 2219 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: Maximum performance, minimum footprint High efficiency geometry Modular design, 8-20 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System)...

Gas Cooler

The peculiar V-shaped structure of ThermoKey Gas Cooler allows to make the most out of the adiabatic system and reduce the overall dimensions of the installation. These units with the option of adiabatic air cooling allow an efficient operation even in regions where the ambient temperature could exceed 40 ° C, reducing the blocking chance of the refrigeration systems, commercial refrigeration (supermarkets) and industrial refrigeration (production, packaging and distribution). The control...

Power-J (V-Tower) Dry Cooler

The Power-J (V-Tower) is a series of drycoolers that can be equipped with the EPS adiabatic system. The EPS (Evaporative Panel System) is an adiabatic system with evaporative panels to reach higher specific capacity compared to a traditional Dry Cooler. The adiabatic system can operate in two ways: Water Saving: increased specific capacity when using H2O – (H2O when engine at maximum). Energy Saving: energy saving to help the fan (H20 immediately). The Power-J (V-Tower)satisfies the VDI...

TKMicro H2O Modular Liquid Coolers

Performance range: capacity for each module up to 120 kW** Fans: Diamter Ø 800 AC and EC motor Modules: from 1 to n (**) Standard conditions - ΔT = 15k ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C

Super Power-J Dry Coolers

Performance range: Capacity from 290 to 2219 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: Maximum performance, minimum footprint High efficiency geometry Modular design, 8-20 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System) o WFS (Wet Fin System), available upon request

Power-J Dry Coolers

POWER-J DRY COOLERS (1 FAN ROW) Performance range: Capacity from 70 to 961 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 800, 900, 1000 mm, AC or EC motor Benefits: High efficiency geometry Modular design, 2-7 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories AFS (Air Fresh System) o WFS (Wet Fin System), available upon request POWER-J DRY...

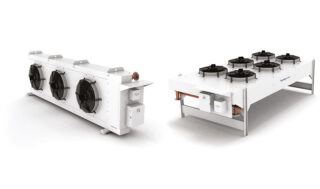

Power-Line Dry Coolers

POWER-LINE DRY COOLERS Performance range: Capacity from 8 to 890 kW (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C) Fans: Diameter Ø 500, 630, 800, 900, 1000 mm, AC or EC motor Benefits: High efficiency geometry Modular design, 1-10 fans 8 sound levels Piping in copper or stainless steel AISI 304 or AISI 316L Finned pack available in a wide range of materials Complete range of accessories Casing in galvanized steel, powder painted POWER-LINE DRY COOLERS (2 FAN...
